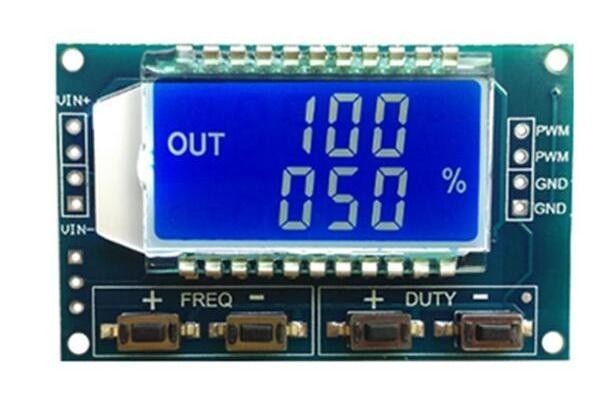

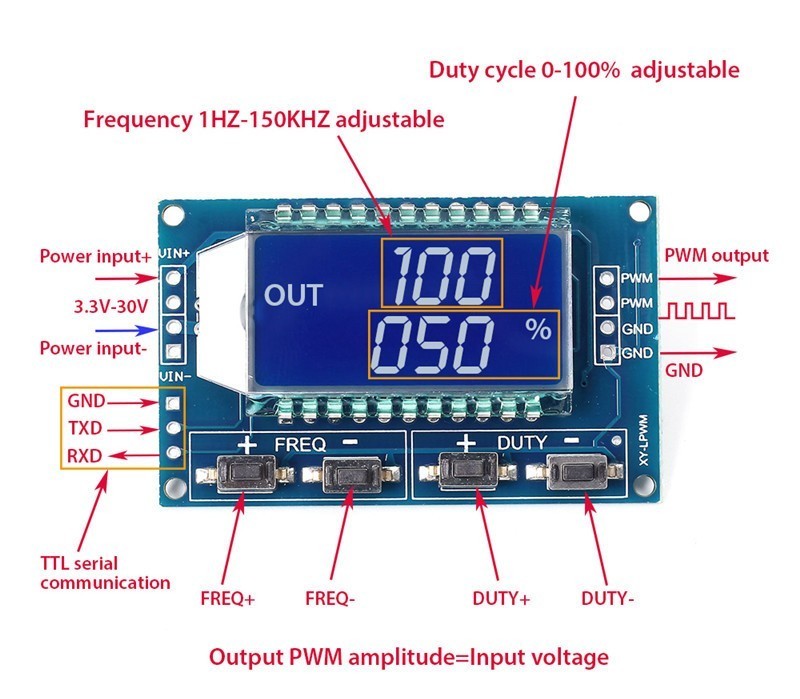

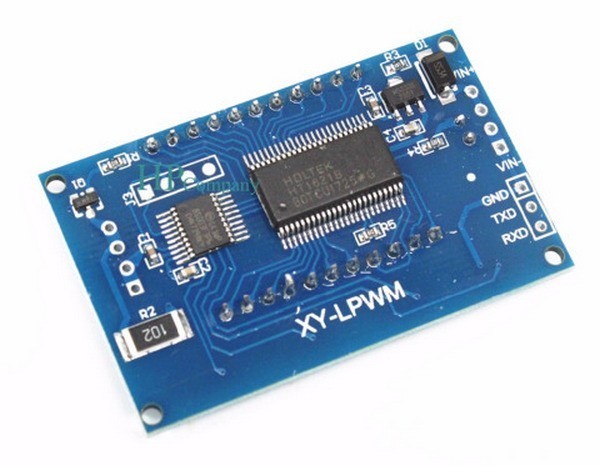

Signal Generator 1Hz - 150 kHz

Operating Voltage: 3.3 - 30 VDC

Frequency Range: 1Hz – 150 KHz

Frequency Accuracy: the accuracy in each range is about 2%

Signal Load Capacity: 5 - 30 mA

Output Amplitude: PWM Amplitude Equal to the Supply Voltage

Operating Temperature: -20 - +70 Celsius

Dimensions: 52 x 32 x 10 mm

Frequency is divided into three ranges:

XXX (no decimal point): the smallest unit is 1Hz, the range 1Hz ~ 999Hz;

XX.X (decimal point in ten): The minimum unit is 0.1Khz; the range of 0.1KHz ~ 99.9KHz

X.X.X. (there are three decimal point): the smallest unit is 1Khz; the range 1KHz ~ 150KHz

Frequency display example:

"100" indicates that the PWM output pulse of 100Hz;

"54.1" indicates that the PWM output pulse of 54.1KHz;

"1.2.4." Indicates that the PWM pulse output 124KHz

Duty Cycle in the range: 0 to 100;

Three frequencies duty cycle is the same, all the parameters non-volatile.
