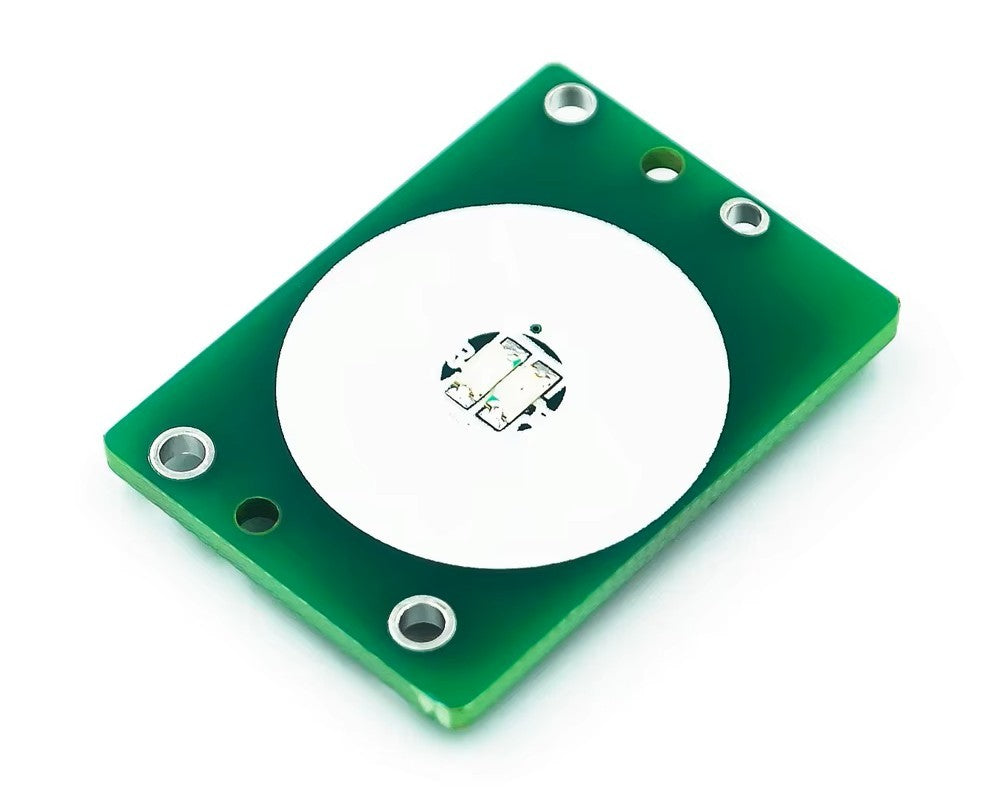

Capacitive Touch Switch Sensor Module

Most customers use this module to refit automobiles and motorcycles, LED lights and light belts, mirror touch, and all kinds of equipment that need to be loaded directly, etc.

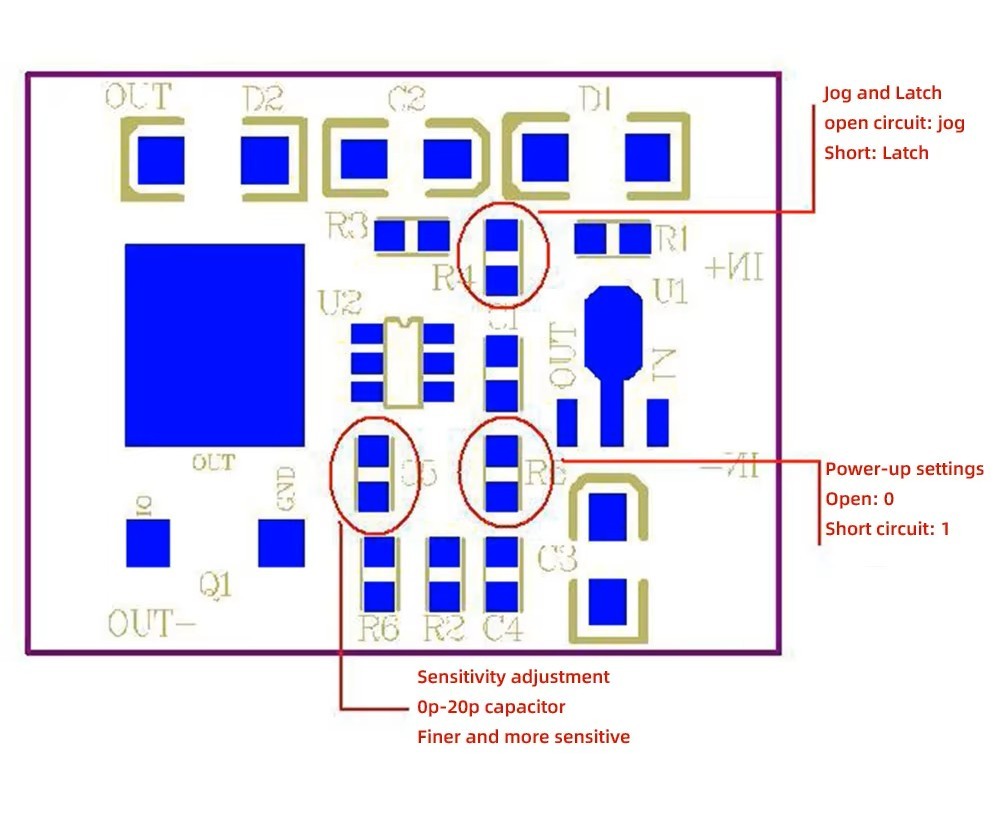

Touch module can be set to move or lock, sensitivity can be adjusted (no welding capacitance, zero degree is the highest. Default delivery), also can lead out touch.

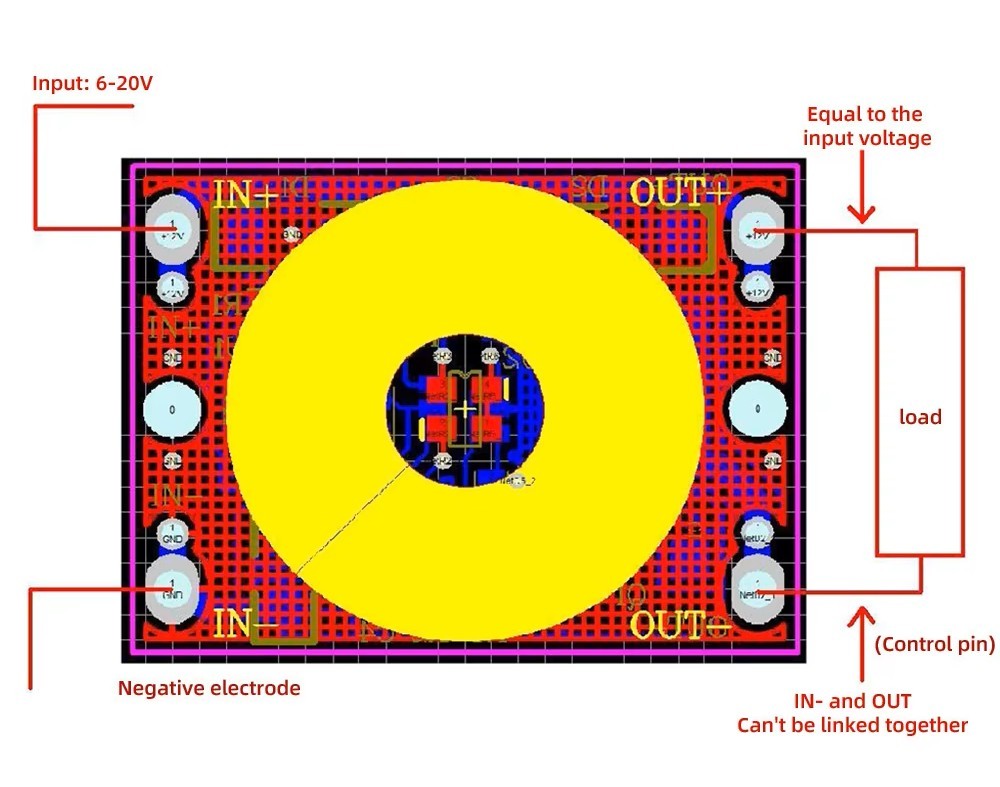

Indicator light: no output of the power-on blue light, and output when touching the red light; Output equals input.

Input/Output DC:6v-20v (note: stable voltage power supply is supported, and constant current power supply is not supported temporarily)

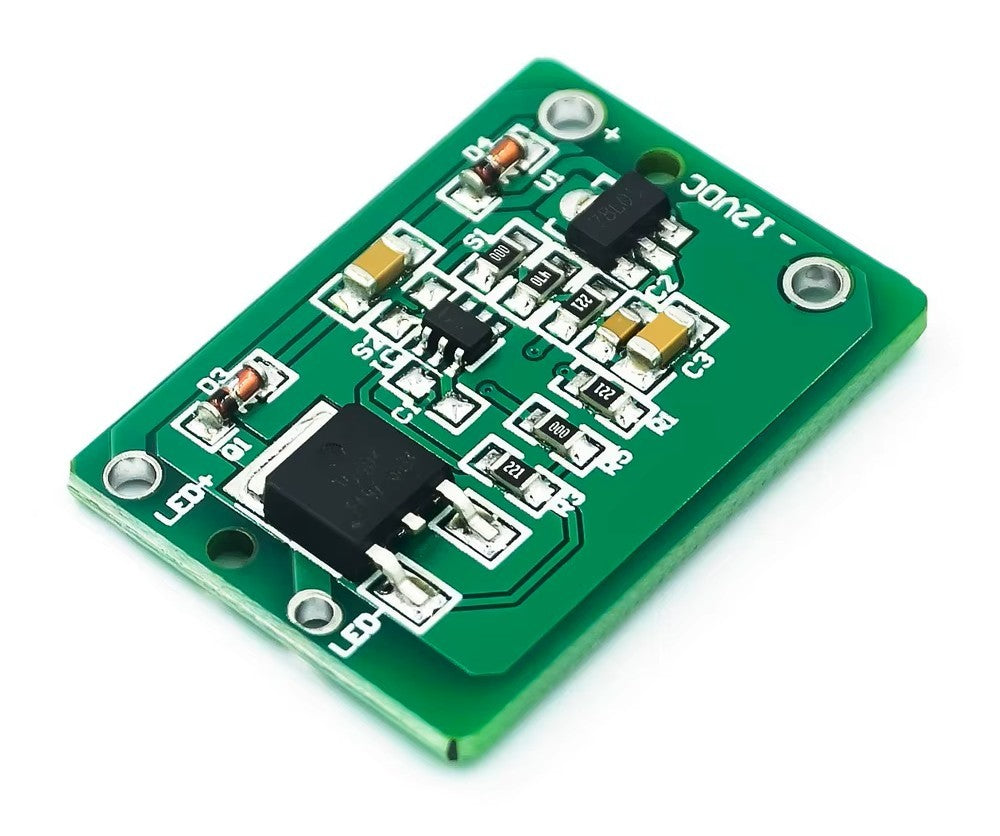

driving Current: 3A standby consumption: 6MA circuit board size: 24mm * 32mm * 1.6mm

at present, the cooperative customers are mostly used to research and develop touch switches, LEDlampretrofit,car modification,escape the room game, various large machinery products and equipment, etc..

It can be widely used in lighting control, toys, household appliances, kitchens, bathroom mirrors, and other products.
